Ruijie X10 medium and large-scale driving sweeper is suitable for the cleaning of epoxy resin, paint, terrazzo, emery, ceramic tile, marble and other flat surfaces with particles. The cleaning, washing and drying can be completed at one time. The driving operation is easy and efficient. This series has two models to choose from, which is suitable for 5000-20000 M2 places.
Function reminder: 80% of the functions of the all-in-one sweeper are used to clean the floor, 20% are used to clean a small amount of particles (dustbin no more than 20L), and the sweeping efficiency is not equal to one sweeper + one sweeper.

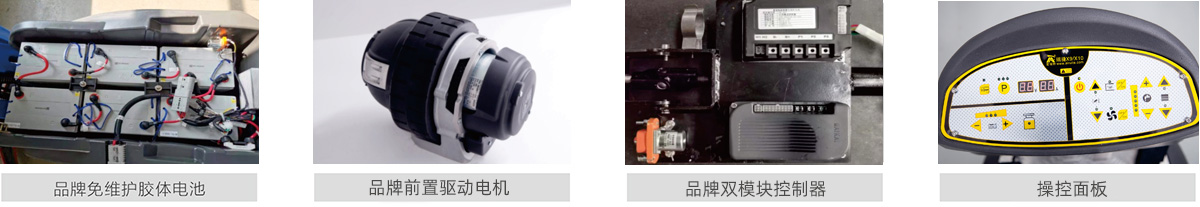

◆ the whole system is standard brand maintenance free colloidal battery, 6 series batteries, single 6v200ah, which is different from the 2 / 4 battery configuration of mini and small driving cleaning integrated machine;
◆ Brand front drive system, low energy consumption, durable leather, strong climbing ability;
◆ Brand dual module controller with high stability;
◆ Bilateral brush sweeps particles to the middle, double roller brush operation, equipped with small dustbin, sweeping and washing is completed at one time;
◆ the water absorption system can be started by one key lifting and reverse sequence control, which can effectively protect the water absorption device when reversing;
◆ Touch key intelligent control panel, multi-stage electric control regulation of water volume and brush rolling pressure;
◆ Slow start device, gravity sensing seat, high vehicle safety;
◆ core parts such as suction fan, brush rolling motor and thrust rod motor are all famous brands;
◆ lithium version is optional for the whole machine.
| Parameters | Ruijie X10 |
| Voltage / rated power | 36V/3260W |
| Maximum efficiency | 6000㎡/h |
| Brush width | 680mm*2 |
| Brush diameter | 400mm*2 |
| Wipe width | 1250mm |
| Clean water / sewage tank capacity | 150/185 L |
| Capacity of dustbin | 5.2 L |
| Duration of operation | ≥5h |
| Forward speed | 0-6 km/h |
| Gradient | ＞30% |
| size | 2100*1250*1400mm |
| Net weight of machine | 570kg |
